BAIXIANG MOTOR CO.,LTD.

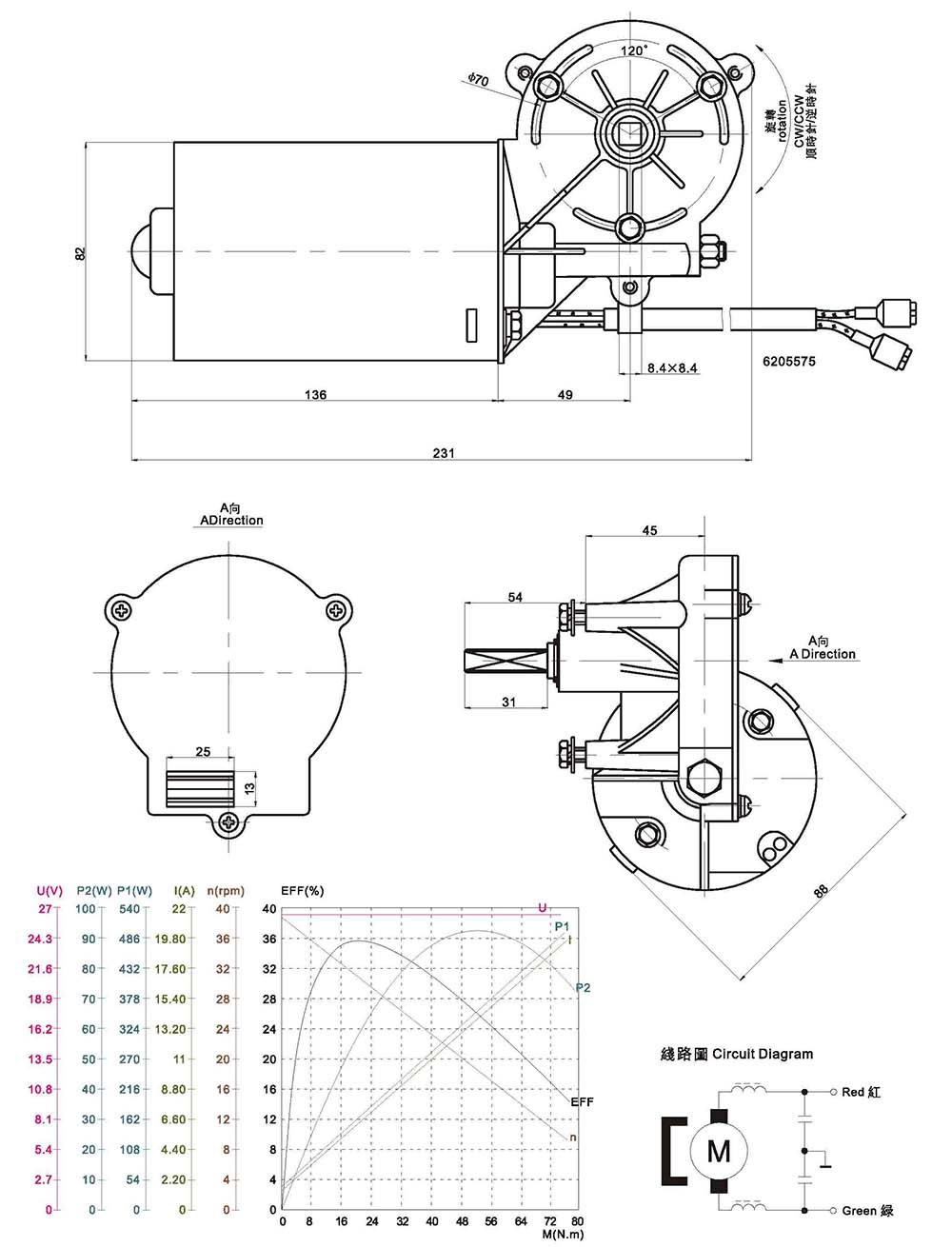

W.E19230R/W.E29230R
Volt：12V/ 24V
No-load current：≤4A/≤2A
No load speed ：45±10%rpm
Load current：12A/6A
Load speed：40±5%rpm
Working torque：14N.m
Brake torque：≥70N.m
Intensity of the gear：≥75N.m
Working temperature：-20.℃~60℃
Noise：≤55dB
Direction of rotation: Red wire+ Clockwise Rotation (CW)
Green wire+ Counter Clockwise Rotation(CCW)
No-load current：≤4A/≤2A
No load speed ：45±10%rpm
Load current：12A/6A
Load speed：40±5%rpm
Working torque：14N.m
Brake torque：≥70N.m
Intensity of the gear：≥75N.m
Working temperature：-20.℃~60℃
Noise：≤55dB
Direction of rotation: Red wire+ Clockwise Rotation (CW)
Green wire+ Counter Clockwise Rotation(CCW)
| Volt | 12V | 24V |
| No-load current | ≤4A | ≤2A |
| No load speed | 45±10%rpm | 45±10%rpm |
| Load current | 12A | 6A |
| Load speed | 40±5%rpm | 40±5%rpm |
| Working torque | 14N.m | 14N.m |
| Brake torque | ≥70N.m | ≥70N.m |
| Intensity of the gear | ≥75N.m | ≥75N.m |
| Working temperature | -20.℃~60℃ | -20℃-60℃ |
| Noise | ≤55dB | ≤55dB |
| Direction of rotation: Red wire+ Clockwise Rotation (CW) Green wire+ Counter Clockwise Rotation(CCW) | ||
