BAIXIANG MOTOR CO.,LTD.

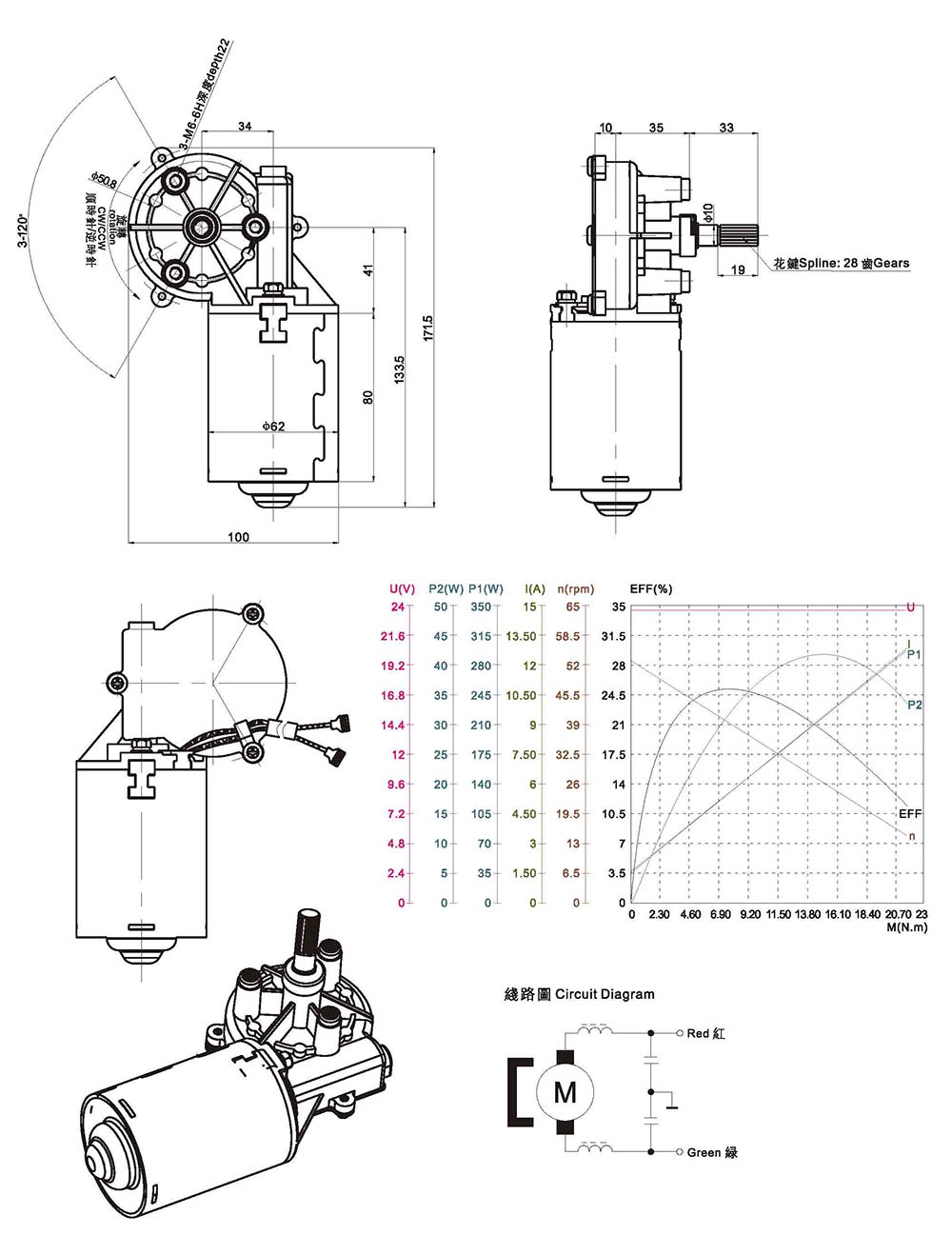

W.E1032R/W.E2032R
Volt：12V/24V
No-load current：2.5A/≤1.5A
No load speed：50±10%rpm
Load current：≤8A/≤5A
Load speed：45±5%rpm
Working torque：6N.m
Brake torque：≥22N.m
Intensity of the gear：25N.m
Working temperature：-20℃~60℃
Noise：≤55dB
Direction of rotation: Red wire+ Clockwise Rotation (CW)
Green wire+ Counter Clockwise Rotation(CCW)
No-load current：2.5A/≤1.5A
No load speed：50±10%rpm
Load current：≤8A/≤5A
Load speed：45±5%rpm
Working torque：6N.m
Brake torque：≥22N.m
Intensity of the gear：25N.m
Working temperature：-20℃~60℃
Noise：≤55dB
Direction of rotation: Red wire+ Clockwise Rotation (CW)
Green wire+ Counter Clockwise Rotation(CCW)
| Volt | 12V | 24V |
| No-load current | 2.5A | ≤1.5A |
| No load speed | 50±10%rpm | 50±10%rpm |
| Load current | ≤8A | ≤5A |
| Load speed | 45±5%rpm | 45±5% rpm |
| Working torque | 6N.m ≥22N.m | 6N.m ≥22N.m |
| Brake torque | ≥22N.m | ≥22N.m |
| Intensity of the gear | 25N.m | 25N.m |
| Working temperature | -20℃~60℃ | -20℃~60℃ |
| Noise | ≤55dB | ≤55dB |
| Direction of rotation: Red wire+ Clockwise Rotation (CW) Green wire+ Counter Clockwise Rotation(CCW) | ||
