BAIXIANG MOTOR CO.,LTD.

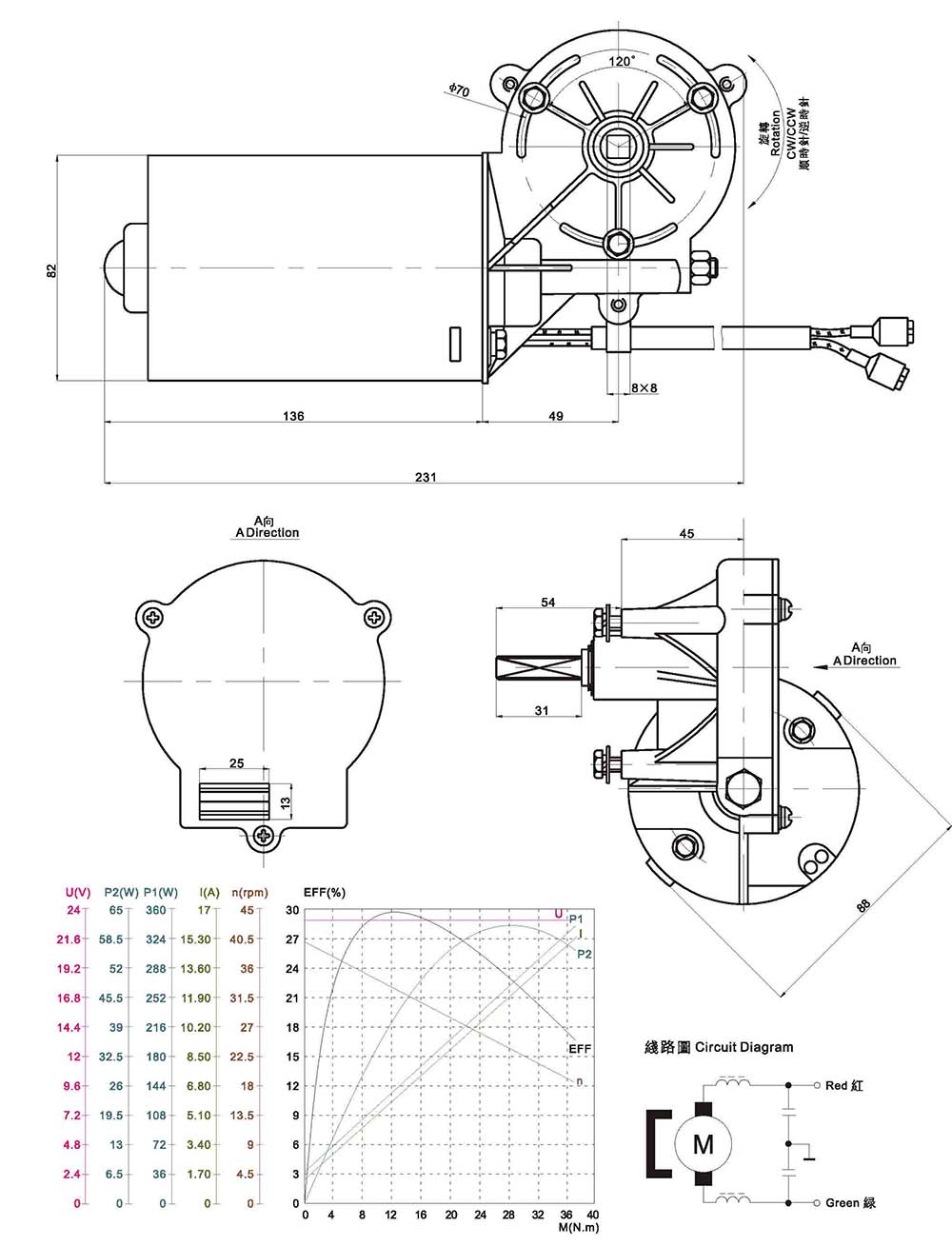

W.E1930R/W.E2930R
Volt：12V/24V
No-load current：≤4A/≤2A
No load speed：45±10%rpm
Load current：≤12A/≤6A
Load speed：40±10%rpm
Working torque：12N.m
Brake torque ≥60N.m
Intensity of the gear：≥75N.m
Working temperature：-20℃~60℃
Noise：≤55dB
Direction of rotation：Red wire+ Clockwise Rotation (CW)
Green wire+ Counter Clockwise Rotation(CCW)
No-load current：≤4A/≤2A
No load speed：45±10%rpm
Load current：≤12A/≤6A
Load speed：40±10%rpm
Working torque：12N.m
Brake torque ≥60N.m
Intensity of the gear：≥75N.m
Working temperature：-20℃~60℃
Noise：≤55dB
Direction of rotation：Red wire+ Clockwise Rotation (CW)
Green wire+ Counter Clockwise Rotation(CCW)
| Volt | 12V | 24V |
| No-load current | ≤4A | ≤2A |
| No load speed | 45±10%rpm | 45±10%rpm |
| Load current | ≤12A | ≤6A |
| Load speed | 40±10%rpm | 40±10%rpm |
| Working torque | 12N.m | 12N.m |
| Brake torque | ≥60N.m | ≥60N.m |
| Intensity of the gear | ≥75N.m | ≥75N.m |
| Working temperature | -20℃~60℃ | -20℃~60℃ |
| Noise | ≤55dB | ≤55dB |
| Direction of rotation: Red wire+ Clockwise Rotation (CW) Green wire+ Counter Clockwise Rotation(CCW) | ||
