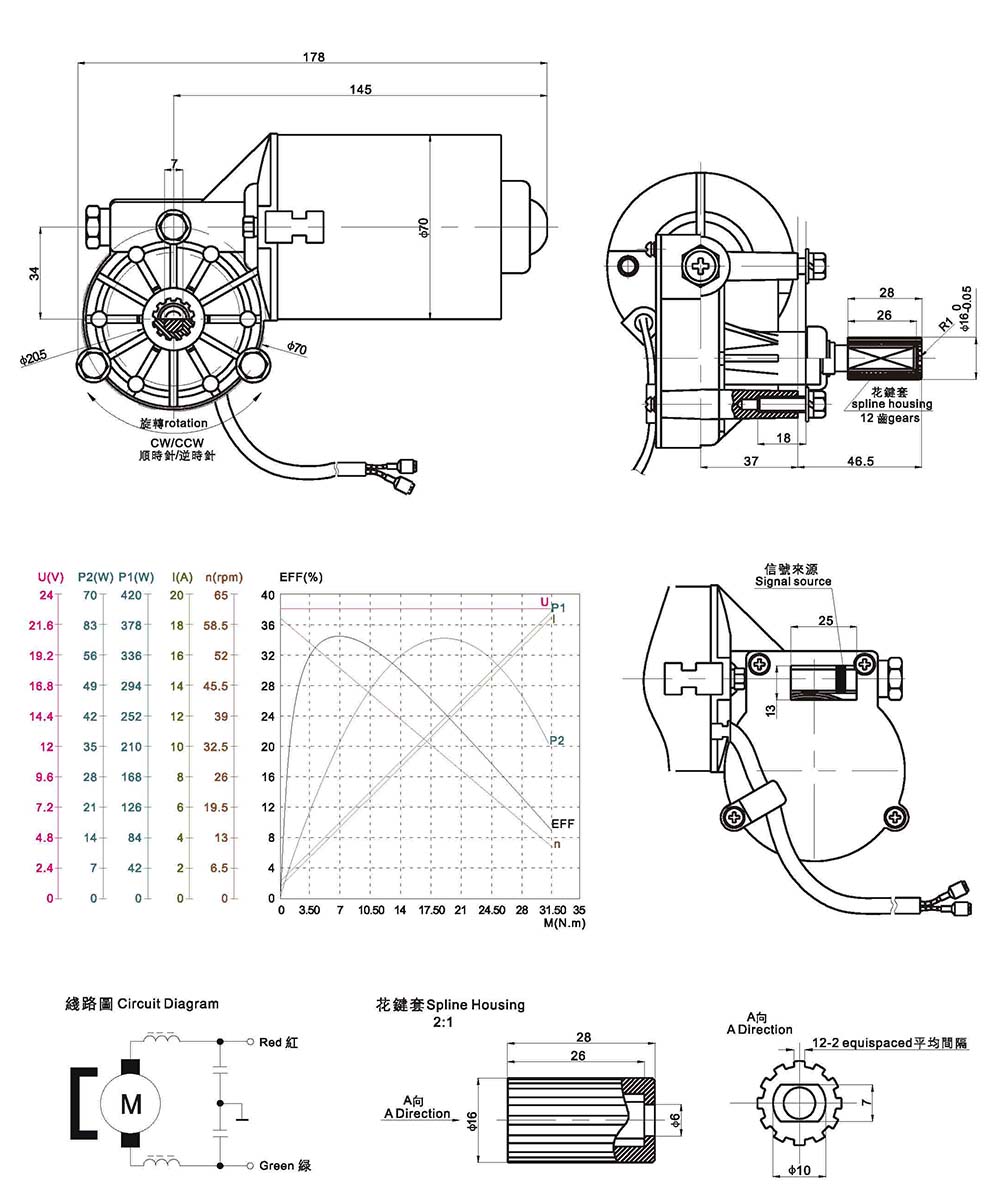

W.E1041R/W.E2041R
Volt：12V/24V
No-load current：2.5A/1.5A
No load speed：50±10%rpm
Load current：8A/5A
Load speed：40±5%rpm
Working torque：7N.m
Brake torque：>24N.m
Intensity of the gear：>30N.m
Working temperature：-20℃-60℃
Noise：＜55dB
Direction of rotation:Red wire Clockwise Rotation (CW)
Green wire Counter Clockwise Rotation(CCW)
No-load current：2.5A/1.5A
No load speed：50±10%rpm
Load current：8A/5A
Load speed：40±5%rpm
Working torque：7N.m
Brake torque：>24N.m
Intensity of the gear：>30N.m
Working temperature：-20℃-60℃
Noise：＜55dB
Direction of rotation:Red wire Clockwise Rotation (CW)
Green wire Counter Clockwise Rotation(CCW)
| Volt | 12V | 24V |
| No-load current | 2.5A | 1.5A |
| No load speed | 50±10%rpm | 50±10%rpm |
| Load current | ≤8A | ≤5A |
| Load speed | 40±5%rpm | 40±5% rpm |
| Working torque | 7N.m | 7N.m |
| Brake torque | ≥24N.m | ≥24N.m |
| Intensity of the gear | ≥30N.m | ≥30N.m |
| Working temperature | -20℃-60℃ | -20℃~60℃ |
| Noise | ≤55dB | ≤55dB |
| Direction of rotation: Red wire + Clockwise Rotation (CW) Green wire + Counter Clockwise Rotation(CCW) | ||
