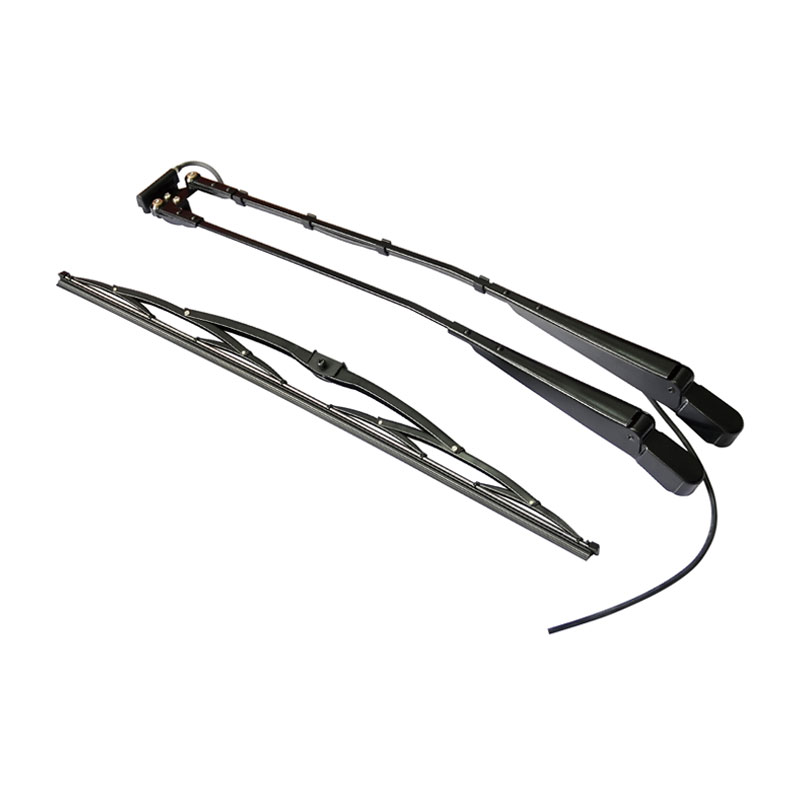

ZD1930-TM-Ⅱ/ZD2930-TM-Ⅱ
Rated Volt：12V/24V
Brake Torque：60N.m
Working Torque：12N.m
No-load speed：L-Speed 30±5r/min H-Speed 45±5r/min
Wiper arm spec：600-1000mm Customized
Wiper blade spec：600/650/700/800/900/1000mm
Wiping angle：36°-95° Customized
Noise：≤65dB(A)
Application：Apply for construction machinery,special vehicles,trucks
Brake Torque：60N.m
Working Torque：12N.m
No-load speed：L-Speed 30±5r/min H-Speed 45±5r/min
Wiper arm spec：600-1000mm Customized
Wiper blade spec：600/650/700/800/900/1000mm
Wiping angle：36°-95° Customized
Noise：≤65dB(A)
Application：Apply for construction machinery,special vehicles,trucks
-

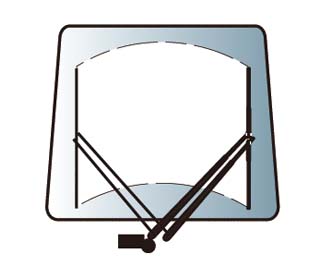

- Parellel movement
| Technical data | |
| Model | ZD1930/ZD2930 |
| Rated Volt. | 12V/24V |
| Brake Torque | 60N.m |
| Working Torque | 12N.m |
| No-load speed | L-Speed 30±5r/min |
| H-Speed 45±5r/min | |
| Wiper arm spec. | 600-1000mm Customized |
| Wiper blade spec. | 600/650/700/800/900/1000mm |
| Wiping angle | 36°-95° Customized |
| Noise | ≤65dB(A) |
| Application | Apply for construction machinery,special vehicles,trucks |
